Rainwater Filter for Larger Roof Areas - Concrete Manhole Installation

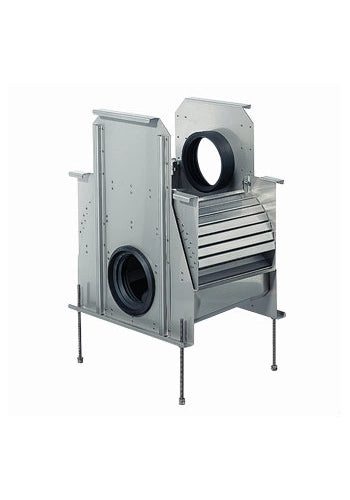

This advanced rainwater filter is specifically designed for larger roof areas, offering efficient filtration and easy installation in a concrete manhole (Ø 1000 mm). It can be installed in standard concrete shafts or similar load-bearing chambers, providing flexibility in setup. The system can be delivered directly to the site, with the option of pre-assembly in the shaft for added convenience.

High-Efficiency Two-Step Cleaning System

The filter features a two-step cleaning process, ensuring a high level of filtration efficiency regardless of the flow rate. The steep incline of the filter cartridge ensures that debris is continuously flushed away into the sewer system. The connection to the sewer is made directly at the shaft, allowing the dirt to settle at the bottom of the chamber and be washed away with the next heavy rainfall, keeping the filter clear and operational.

Capacity and Versatility

Designed for roof areas up to 1200 m² according to DIN 1986, this system provides a reliable solution for larger properties. Additionally, thanks to the bypass installation feature, even larger roof areas can be connected, enhancing the system’s adaptability to various needs. This rainwater filter provides an efficient, low-maintenance solution for managing runoff from larger roof areas while ensuring clean, filtered water with minimal effort.

Water tank details
Height 670mm
Length 390mm
Width 540mm
Inlet rainwater DN 200
Outlet into tank DN 150
Outlet into sewer DN 200
Filter sieve Mesh size 0.4 x 1 mm
Material Stainless steel
